Solution geopandas & cartopy

Solution geopandas & cartopy#

Take the following code snippet as a starting point. It loads the NUTS regions of Europe, the power plant dataset, and a shapefile for the Danish Natura2000 natural protection areas.

import cartopy
import pandas as pd
import geopandas as gpd
import cartopy.crs as ccrs
import matplotlib.pyplot as plt

url = "https://tubcloud.tu-berlin.de/s/RHZJrN8Dnfn26nr/download/NUTS_RG_10M_2021_4326.geojson"
nuts = gpd.read_file(url)

fn = "https://raw.githubusercontent.com/PyPSA/powerplantmatching/master/powerplants.csv"
df = pd.read_csv(fn, index_col=0)
geometry = gpd.points_from_xy(df["lon"], df["lat"])
ppl = gpd.GeoDataFrame(df, geometry=geometry, crs=4326)

url = "https://tubcloud.tu-berlin.de/s/mEpdmgBtmMbyjAr/download/Natura2000_end2021-DK.gpkg"
natura = gpd.read_file(url)

Hide code cell content


import cartopy
import pandas as pd
import geopandas as gpd
import cartopy.crs as ccrs
import matplotlib.pyplot as plt

url = "https://tubcloud.tu-berlin.de/s/RHZJrN8Dnfn26nr/download/NUTS_RG_10M_2021_4326.geojson"
nuts = gpd.read_file(url)

fn = "https://raw.githubusercontent.com/PyPSA/powerplantmatching/master/powerplants.csv"
df = pd.read_csv(fn, index_col=0)
geometry = gpd.points_from_xy(df["lon"], df["lat"])
ppl = gpd.GeoDataFrame(df, geometry=geometry, crs=4326)

url = "https://tubcloud.tu-berlin.de/s/mEpdmgBtmMbyjAr/download/Natura2000_end2021-DK.gpkg"
natura = gpd.read_file(url)

Task 1: Identify the coordinate reference system of the natura GeoDataFrame.

Hide code cell content


natura.crs

<Projected CRS: EPSG:3035>
Name: ETRS89-extended / LAEA Europe
Axis Info [cartesian]:
- Y[north]: Northing (metre)
- X[east]: Easting (metre)
Area of Use:
- name: Europe - European Union (EU) countries and candidates. Europe - onshore and offshore: Albania; Andorra; Austria; Belgium; Bosnia and Herzegovina; Bulgaria; Croatia; Cyprus; Czechia; Denmark; Estonia; Faroe Islands; Finland; France; Germany; Gibraltar; Greece; Hungary; Iceland; Ireland; Italy; Kosovo; Latvia; Liechtenstein; Lithuania; Luxembourg; Malta; Monaco; Montenegro; Netherlands; North Macedonia; Norway including Svalbard and Jan Mayen; Poland; Portugal including Madeira and Azores; Romania; San Marino; Serbia; Slovakia; Slovenia; Spain including Canary Islands; Sweden; Switzerland; Türkiye (Turkey); United Kingdom (UK) including Channel Islands and Isle of Man; Vatican City State.
- bounds: (-35.58, 24.6, 44.83, 84.73)
Coordinate Operation:
- name: Europe Equal Area 2001
- method: Lambert Azimuthal Equal Area
Datum: European Terrestrial Reference System 1989 ensemble
- Ellipsoid: GRS 1980
- Prime Meridian: Greenwich

Task 2: Plot the natura GeoDataFrame on a map without transforming its CRS. Use cartopy for setting the projection of the figure and add coastlines and borders.

Hide code cell content

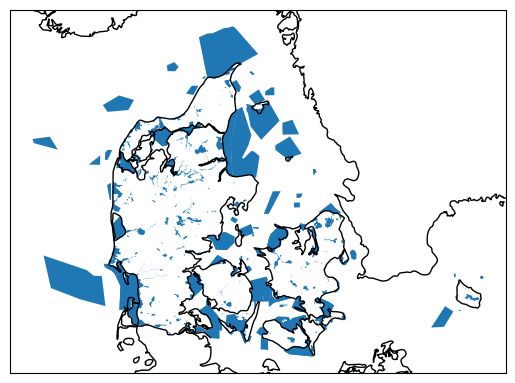

fig = plt.figure()
ax = plt.axes(projection=ccrs.epsg(3035))
natura.plot(ax=ax)
ax.coastlines()
ax.add_feature(cartopy.feature.BORDERS);
_images/470cc76b0e2b03397baf825562d457fcc8f001c4e5f085159d7ac711a4ae3996.png

Task 3: Identify the name of the largest protected area in the natura GeoDataFrame.

Hide code cell content


i = natura.area.idxmax()
natura.loc[i, "SITENAME"]

'Skagens Gren og Skagerak'

Task 4: What is the total protection area in square kilometers.

Hide code cell content


natura.dissolve().area.iloc[0] / 1e6

np.float64(22646.37570082661)

Task 5: The natura GeoDataFrame has a column SITETYPE that indicates the type of protected area. Calculate the total area for each type of protected area (again in square kilometers).

Hide code cell content


natura.dissolve("SITETYPE").area / 1e6

SITETYPE
A    11751.536465
B    16632.563873
C     3037.541735
dtype: float64

Task 6: By how much (in percent) would the total area of protected areas increase if a buffer of 1 km around each protected area were also protected?

Hide code cell content


original_area = natura.dissolve().area.div(1e6).iloc[0]

Hide code cell content


expanded_area = gpd.GeoDataFrame(geometry=natura.buffer(1000)).dissolve().area.div(1e6).iloc[0]

Hide code cell content


expanded_area / original_area * 100 - 100

np.float64(46.434737333502085)

Task 7: List the power plants that are located within protected areas. How many power plants are located within protected areas? Use the .sjoin() function. Check the result by plotting these power plants on top of the protected areas.

Hide code cell content


p = ppl.to_crs(natura.crs).sjoin(natura)
p
Name Fueltype Technology Set Country Capacity Efficiency DateIn DateRetrofit DateOut ... StorageCapacity_MWh EIC projectID geometry index_right SITECODE SITENAME MS SITETYPE INSPIRE_ID
id
3670 Sprogo Offshore Wind Farm Wind Offshore PP Denmark 21.0 NaN 2009.0 NaN NaN ... 0.0 {nan} {'GEM': {'G100000914988'}, 'GPD': {'WRI1030002'}} POINT (4380645.027 3582173.5) 201 DK008X190 Vresen DK B Dk.nst.ps.SAC100
18670 Rens Hedegard Plantage Wind Farm Wind Onshore PP Denmark 15.0 NaN 2010.0 NaN NaN ... 0.0 {nan} {'GEM': {'G100000913204'}} POINT (4259799.359 3531446.118) 90 DK009X063 Sønder Ådal DK A Dk.nst.ps.SPA63
18739 Ringkobing Skjern Solar Solar PV PP Denmark 1.0 NaN 2013.0 NaN NaN ... 0.0 {nan} {'GEM': {'G100001008126'}} POINT (4206196.591 3673153.835) 109 DK00CX161 Stadil Fjord og Vest Stadil Fjord DK C Dk.nst.ps.SAC59

3 rows × 25 columns

Hide code cell content


len(p)

3

Hide code cell content

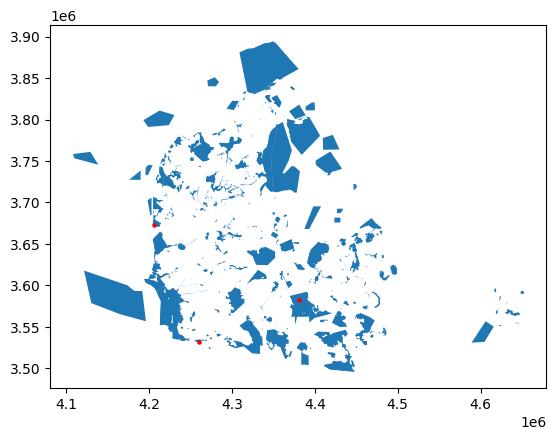

ax = natura.plot()
p.plot(ax=ax, color="red", markersize=5);
_images/baa945a080a6195831ca72a2d8e7bcc29456f9b9ed819e98dddc6e9615c61ed2.png

Task 8 (advanced): What fraction of the natural protection area is located offshore? Use set operations with the .overlay() function and the NUTS regions GeoDataFrame.

Note

Consult the GeoPandas documentation if you need an introduction to how to use the .overlay() function.

Hide code cell content


dk = nuts.query("LEVL_CODE == 0 and CNTR_CODE == 'DK'")

Hide code cell content


overlay = gpd.overlay(natura, dk.to_crs(3035))

Hide code cell content


onshore = overlay.dissolve().area.div(1e6).iloc[0]
total = natura.dissolve().area.div(1e6).iloc[0]

Hide code cell content


onshore / total * 100

np.float64(18.630060811760643)
